IQAN-MDM

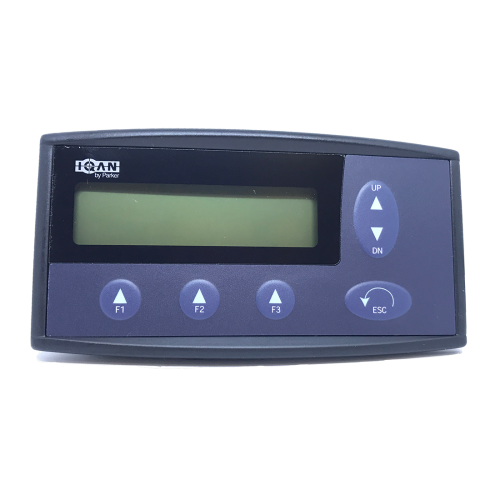

The IQAN-MDM is a master unit that works with the expansion modules in legacy IQANdevelop platform control system. The unit is fully programmable to work as a master for controlling applications, as a graphical user interface and as a CAN interface.
IQAN-MDM uses an improved 2.8” FSTN, black & white LCD for the best readability in all lighting conditions. The display uses Chip-On-Glass technology for higher reliability.
Function buttons and control buttons in combination with a graphical display makes system feedback with user interaction possible. With the three function buttons, a decrease/increase value-button and an escape-button, it is easy to adjust, calibrate and measure the IQAN system. In case of an error the display will alert the operator with a signal and a message on the display.
IQAN-MDM is designed for in-cab as well as outdoor use. It can be used in both 12 and 24 Vdc systems. All inputs and outputs are protected against short circuit to ground, to main power supply and reversed polarity.
The IQAN-MDM is connected to other units by a CAN bus. The CAN bus is configured as ICP (IQAN CAN Protocol) and communicates with IQANdevelop platform expansion modules. The RS232 interface is used for connection with PC and for land line or CSD wireless modem (remote diagnostic) connection. Up to 4 different individual driver modes can be stored in the unit, which are easily selectable.
The display also contains a real time clock, an alarm output and can present text in 10 different languages.
The IQAN-MDM is in phase-out status and is not recommended for new applications.
